12V Car Monitor Replacement 7 inch TFT LCD Display for Auto Rear View Home Security Surveillance Camera Car Electronics
Car Monitor 7 inch TFT LCD Display 2 Way Video Input PAL/NTSC Monitor 12V for Auto Rearview Home Security Surveillance Camera Specification: Screen size: 7-inch high-resolution TFT LCD display Aspect ratio: manual 16:9 and 4:3 Resolution: 480 (H) * 234 (V) or 800 (H) * 480 (V) Input voltage: DC 12V Brightness: 300cd/m2 Product size: 174 * 113 * 19mm/6.85*4.45*0.75" Standard: PAL / NTSC automatic switching Video input: DVD AV1, Car Camara AV2, AV2 is priority Power consumption: <7W Note: There may be slight size deviations due to manual measurement, different measuring methods and tools. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
1 Set X Monitor
[relateproductdetail/]
|
DWIN 7 Inch 800*480 TFT LCD Display Module Capacitive/Resistive TTL/RS232 Commercial Smart Screen For Arduino DMG80480C070_04W
Product Information
DWIN 7.0 Inch 800x480 Resolution , 262K color, TN Screen, commercial high standard TFT LCD module HMI display resistive touch panel.DMG80480C070_04W is an intelligent touch screen with UART port that can be controlled by any MCU via command, so it can be used as a TFT display & touch controller in various electronic equipment.Lcd display screen panel, touch lcd screen, DWIN display is your best choice for HMI project. DWIN LCD display based on DWIN T5L cpu with GUI and OS dual core.The GUI kernel can support UI interface design based on powerful DWIN design software tools, including data, text, curves, basic graphics, key value upload, etc.The OS kernel can be opened to the customer for a second development in the OS compilation and it enhances the functionality of the gui.All MCUs can connect with DWIN smart display.
FAQ of DWIN HMI Intelligent Displays
Q1: How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
A: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Q2: Does your product include program software?
A: Yes. The free graphic user interface software is included.
Q3: Does DWIN product need a MOQ when purchase? I only need some samples in the first.
A: No MOQ for standard product.
Q4: What kinds of Express services are supported? Trade terms is ?
A: AliExpress standard shipping or DHL, TNT, UPS,FedExrequired. Trade terms is EXW.
Q5: Does DWIN screen support playing videos or audios?
A: All display with speaker interface support playing audios. Andmulti-accessproduct support analog video and digital video.
Q6: What kind of size screen can DWIN provide?
A: 2.0" 2.4" 2.8" 3.0" 3.5" 4.0" 4.1" 4.3" 5.0" 5.6" 6.86" 7.0" 8.0" 8.88" 9.7" 10.1" 10.2" 10.4" 12.1" 15.0" 15.6" 18.5" 21.5"
Q7: I don’t want spend my time on development your screen, can you development it for me?
A: Yes, DWIN provide customize solutions, please contact me and advise demands details.
Q8: What is the quality warranty of DWIN screens?
A: 12 months starting from the CI date.
Q9: What terms of payment?
A: 100% T/T in advance.
If return or refund is needed, please contact us before goods returning!
Any further questions, or customizing service needed, please contact me by clicking contact seller!
Please note that all of the accessories need to purchase separately.
12V/ 220V 2CH LCD Display Digital HIFI Audio Stereo Power Amplifier bluetooth FM Radio Car Home with Remote Control
Mini HiFi Digital Bluetooth Audio Power Amplifier.
Built-in LCD with backlight function.
Support SD card, U disk, MP3 format playback, support Bluetooth wireless connection.
Support FM stereo radio.
Two microphone input slots, karaoke system in home or car.
With treble, bass and volume controls, it is very easy to use.
Low falsification can provide clearer, stronger and more powerful sound.
Two main channel outputs.
With remote control function.
DC/AC power input, suitable for home or car.
Specifications:
Model: BT - 118
Input voltage: AC 220V/DC12V (on-board)
Plug: European Union plug
Bluetooth: Supported
Output power: 80W + 80W
Peak power: 200W + 200W
Channel: 2 CH
Load impedance: 4-16 Ω
SNR: > 92 dB
Frequency modulation frequency: 87.5-108MHz
Distortion rate: 0.05%
Frequency: 10 hz - 20 KHZ
Sensitivity: 0.25mV-220mV
RC power supply: CR2052 battery (built-in)
Dimensions: Approx. 15.8 x 14.5 x 5.7 cm / 7.06 x 5.9 x 2.1 in
Package includes:
1 audio amplifier
1 remote control (excluding CR2032 battery)
7 Inch Car Monitor 12V TFT LCD Screen PAL/NTSC Car Monitor Rear View Screen For Car Truck Home Security Surveillance Camera
Features:
*100% Brand New, High Quality
* Equipped with a 7-inch LED-backlit color TFT LCD display.
*There are 2 AV inputs. AV1 connects to car DVDs, VCRs and other video equipment. AV2 to car backup camera.
* Rearview priority when reversing: the display will automatically start and display the video of the rearview camera synchronously when reversing; the display will automatically turn off after reversing.
* When reversing, the scene will automatically switch to the rear view camera and then switch back to the original scene. Support rotating screen, screen ratio 16:9/4:3 adjustable. Support to adjust brightness, contrast, color.
*No audio input or output. Equipped with infrared remote control, easy to operate. Works perfectly with car DVDs, VCDs, webcams, set-top boxes, satellite receivers and other video equipment.
*It can be applied to large trucks, buses, cars, commercial vehicles, pickup trucks, trailers, engineering vehicles, agricultural vehicles, and electric vehicles.
Specification:
*Host:
*100% Brand New, High Quality
*Function: 7 inch TFT color LCD car rear view camera
*Display: Color TFT LCD
*Screen size: 7 inches
*Resolution: 800X600
*Contrast ratio: 350:1
*Video: PAL/NTSC
* Video Input: Bidirectional video input
*Power supply: DC 12V/24V
*Shell material: ABS
*Operating temperature: 0 to 80 degrees Celsius
*Storage temperature: -10 to 80 degrees Celsius
*Product size: 174*115mm
*Colour: Black
*4LED light camera:
*Waterproof rear camera,
*4 LED night vision lights;
*Camera viewing angle: 150°;
*Image chip: 1/3 inch color CMOS PC1030;
*TV system: NTSC/PAL;
*pixels: 628*582 pixels;
*Power supply: DC 12V;
*Working temperature: -40°C~+80°C;
*Video output: RCA connector, 1.0VP-P, 75Ohm
Complete machine list:
1*7 inch car monitor
1*Bracket
1*Power cord
1*remote control (without battery)
1*User Manual
1* Reversing camera
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.

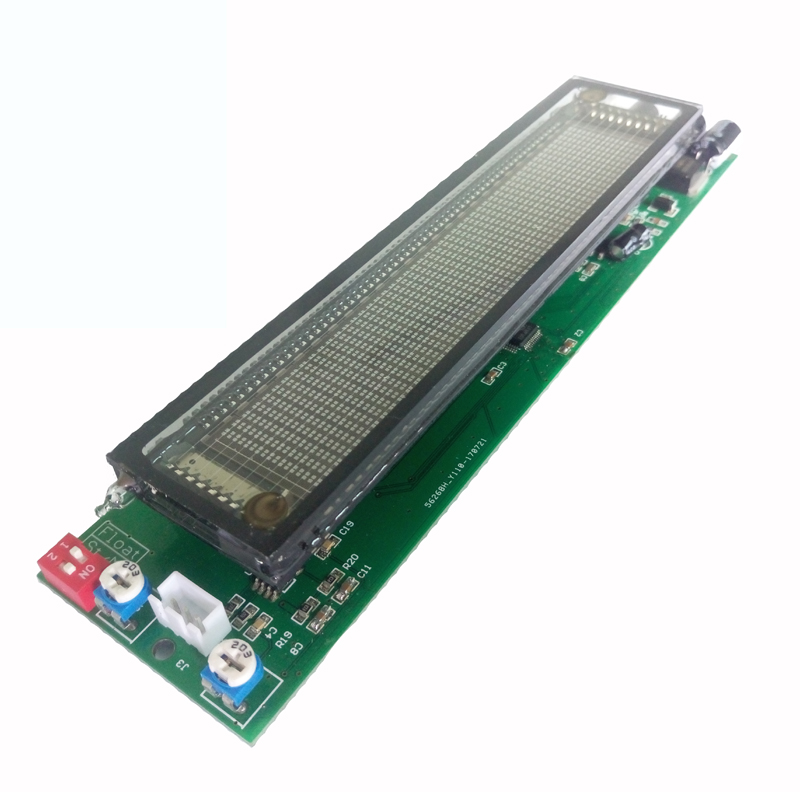

Free 12V VFD Green fluorescence new spectrum DIY25 frequency division 17 LED screen display 12V lamp dynamiac screen light
Note: If the AC power supply should be converted to DC and independently supplied, the GND should be the same as the audio GND for DC power supply.
Please read the words on the PCB, and then power on the PCB

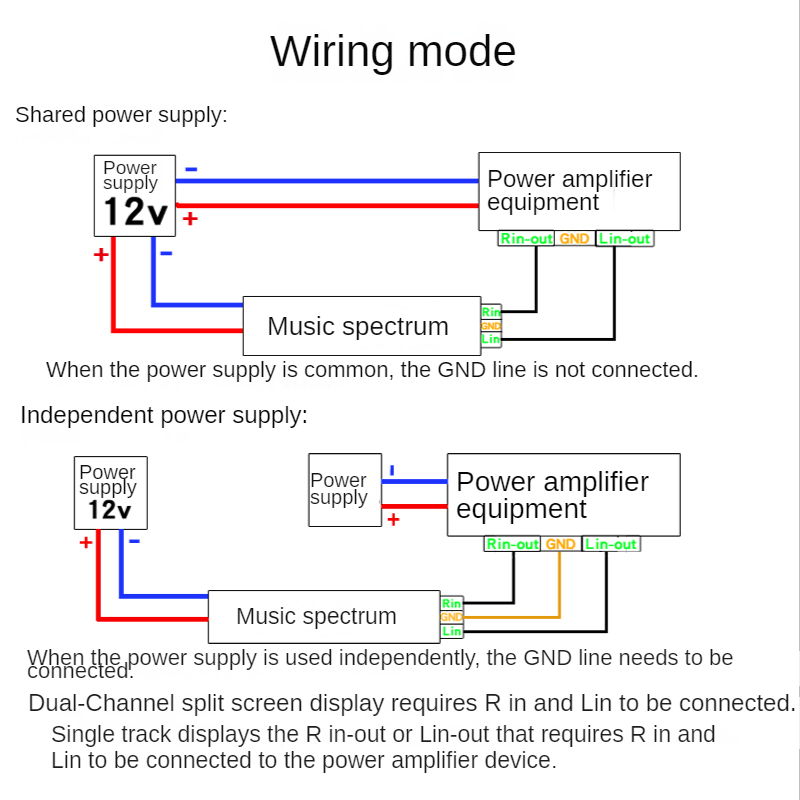

Some speakers are BTL output or use class D function, and there is no grounding terminal at both ends of the speakers, is that OK?
Yes, this connection method has 2 cases. The first one is to use the power supply in common with the power amplifier, such as on the car. At this time, it is OK to connect any horn line to Lin or Rin, and GND need not be connected.
Second, the use of a separate power supply, the power supply and horn power amplifier power supply is isolated, any 1 line of the horn and power amplifier GND connected to the screen Lin and GND, if only connected to a horn, the two horn lines directly connected to the screen Lin and GND can also be.
---------------------------------------------------------------------------------------
There are three colors on this screen. The border on both sides is orange, there is a milky white bar at the bottom, and the part showing the spectrum in the middle is green.
If you want to display white, use a brown-red shade.

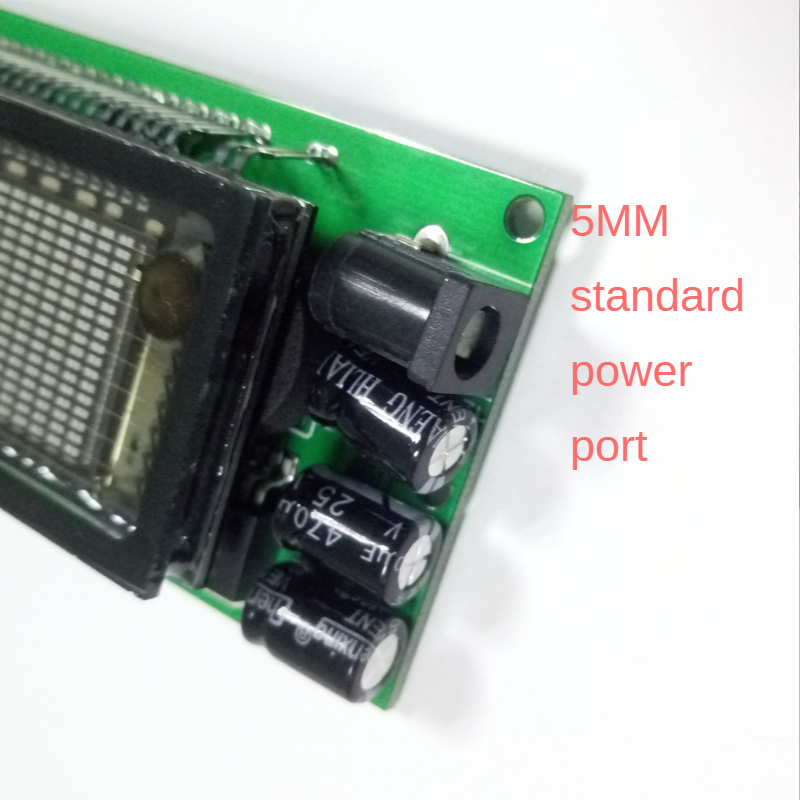

Wiring note: It is strongly recommended that the power supply is 12V DC,
The audio input for audio in terminals and GND is compatible with the audio output of general devices, and the output is also such a pair of lines audio out and GND.
It is strongly recommended to connect one of the lines of the horn's power output.
The audio input GND of this PCB is connected with the 5V power supply GND. If the PCB is installed in the device, ensure that the power supply GND and the audio output GND are the same or completely isolated.
Frequently Asked Questions:
Some users responded that there was light at the bottom of the screen even when there was no music, which was suspected to be a quality problem. In fact, this is not a quality problem, but the unclean music signal itself caused by the user. Generally, it is caused by the unclean power supply, including the 12V power input of the machine, or the USB speaker similar to the Bluetooth speaker. Such as digital audio equipment, the audio in this type of equipment contains a lot of fundamental noise, some low-end products can be directly heard from the speaker. Judging whether it is foreign noise is actually very simple, that is, the input terminal is connected to the ground, and the screen should not have any display at this time.
12V Car Monitor Replacement 7 inch TFT LCD Display for Auto Rear View Home Security Surveillance Camera Car Electronics
Car Monitor 7 inch TFT LCD Display 2 Way Video Input PAL/NTSC Monitor 12V for Auto Rearview Home Security Surveillance Camera
Specification: Screen size: 7-inch high-resolution TFT LCD display Aspect ratio: manual 16:9 and 4:3 Resolution: 480 (H) * 234 (V) or 800 (H) * 480 (V) Input voltage: DC 12V Brightness: 300cd/m2 Product size: 174 * 113 * 19mm/6.85*4.45*0.75" Standard: PAL / NTSC automatic switching Video input: DVD AV1, Car Camara AV2, AV2 is priority Power consumption: <7W Note: There may be slight size deviations due to manual measurement, different measuring methods and tools. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
